F3-Pro Whole-Home Smart Scene Switch | Touchscreen Central Control with Matter Support

Tuya Smart Platform | Cross-Ecosystem Compatibility | Millimeter-Wave Radar | 4-in-1 Multifunctional Hub

Product wiring diagramKey Selling Points

✅【Smart Display × Radar Sensing】 3.5" IPS fully laminated touchscreen with 16M-color customizable UI + millimeter-wave radar enables "approach-to-wake, departure-to-sleep" interaction, balancing energy efficiency and intuitive operation.

✅【Modular Installation】 Standard 86-type frame (72×72mm) fits existing switch boxes. Supports horizontal/vertical multi-unit combinations for centralized control panels.

✅【4-in-1 Multifunctional Hub】 4 switches (500W per circuit) + 4 curtain controls + 4 dimming channels + 8 scene modes – manage lights, appliances, motorized curtains, and smart dimmers simultaneously.

• Feature Breakdown

• 1. Lighting & Appliance Control

• 4×500W relay outputs (resistive loads)

• Hybrid touch/button operation with offline functionality

• Scene Automation

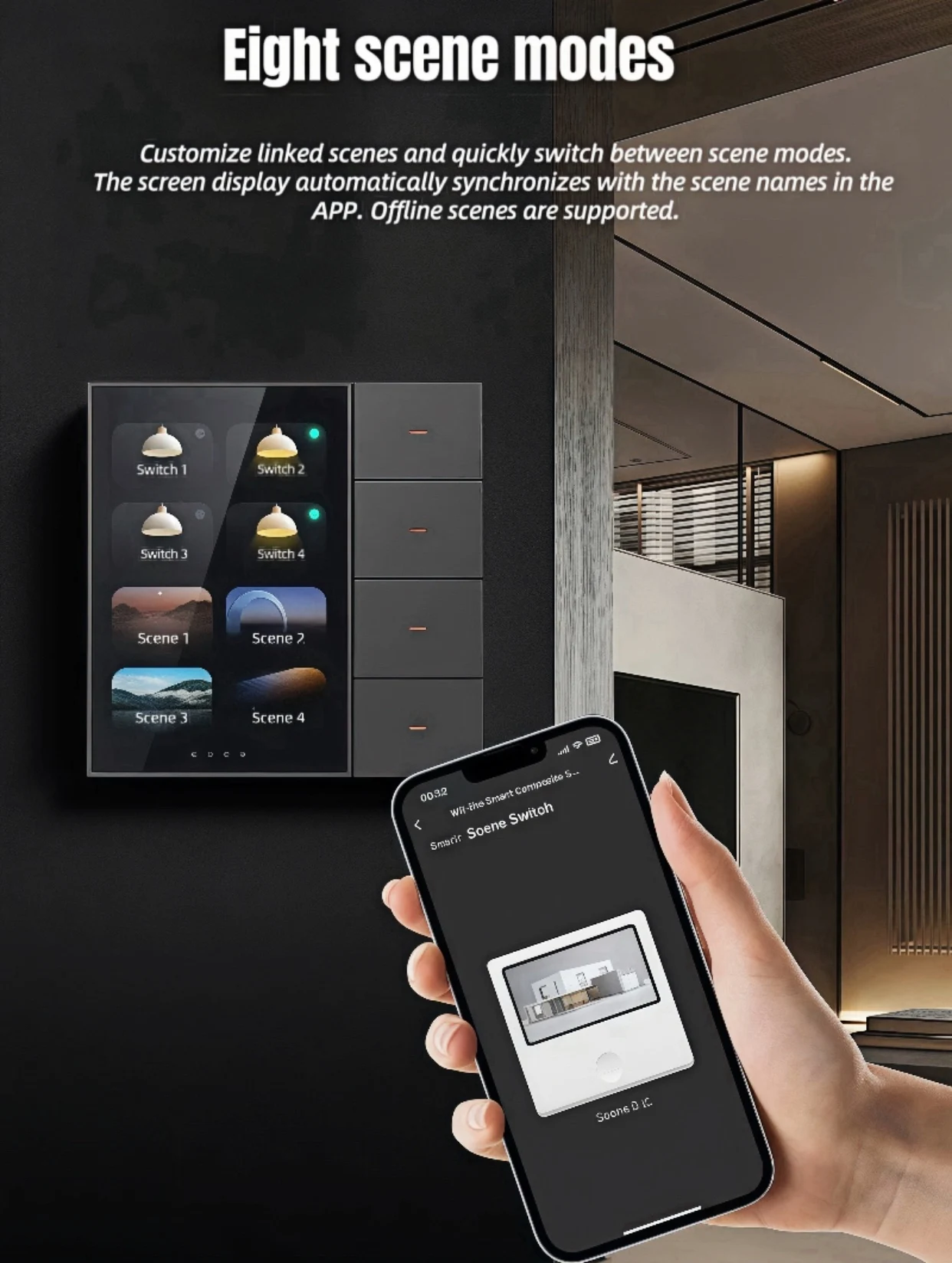

• 8 customizable scene presets (Away Mode/Movie Night/Sleep Mode, etc.)

• Offline execution ensures reliability during network outages

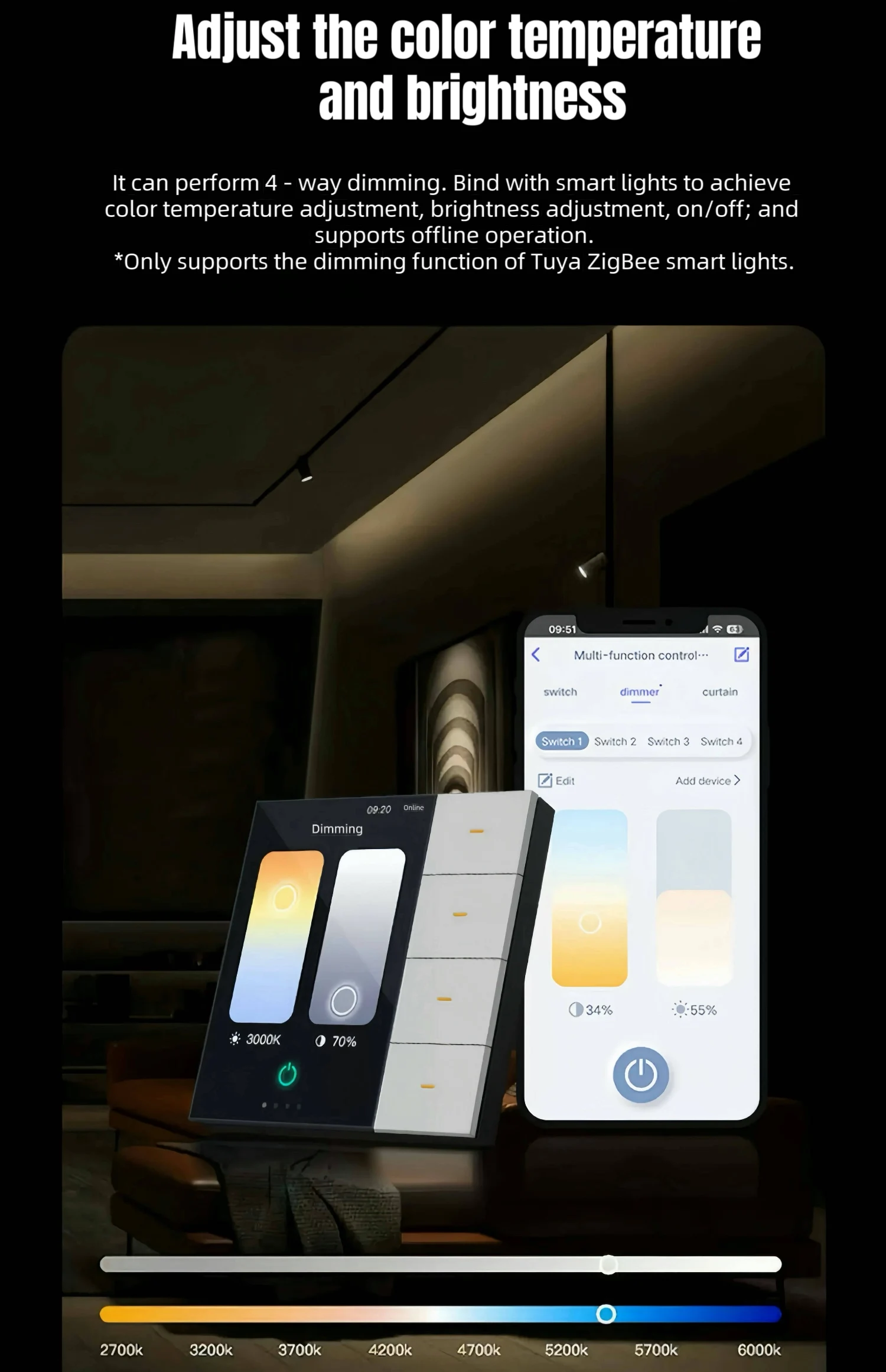

Zigbee dimming: 0-100% brightness/color temperature adjustment for 4 zones

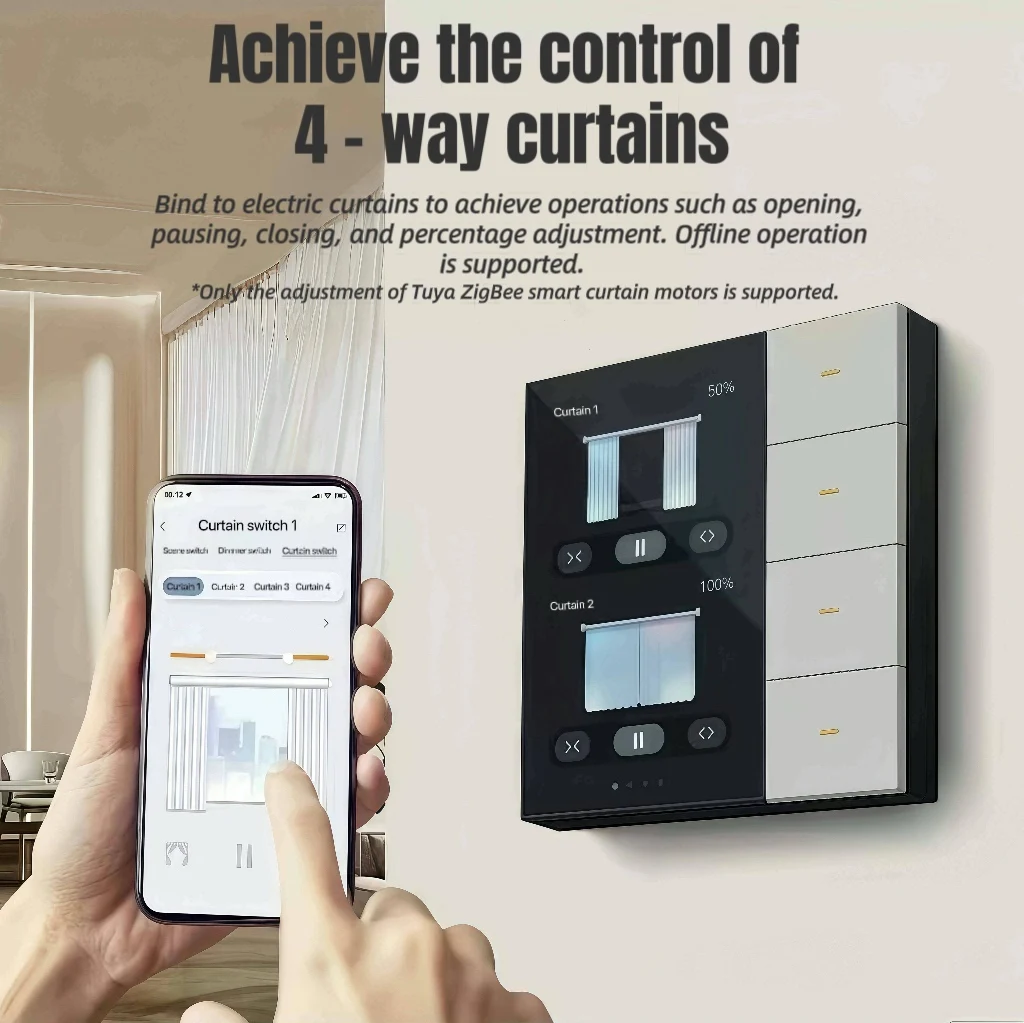

• 2. Curtain Precision Control

• 4-channel motor control: open/close/stop + percentage positioning (e.g., 50% open)

• Sunlight/timer-triggered automation capabilitie

Intelligent Sensing

Millimeter-wave presence detection (superior to PIR) for auto lighting

Cross-device automation with sensors, security systems, and climate devices

Use Case Scenarios

• 🌙Morning Routine: Tap "Good Morning" → Curtains open 30% + lights fade to 4000K warm white 🚪Away Mode: Radar detects no motion → Lights off + appliances standby + security arm 🎥Movie Night: One-touch scene → Curtains close + lights dim + projector powers on 💤Sleep Mode: Double-tap screen → Gradual lights off + AC enters night mode

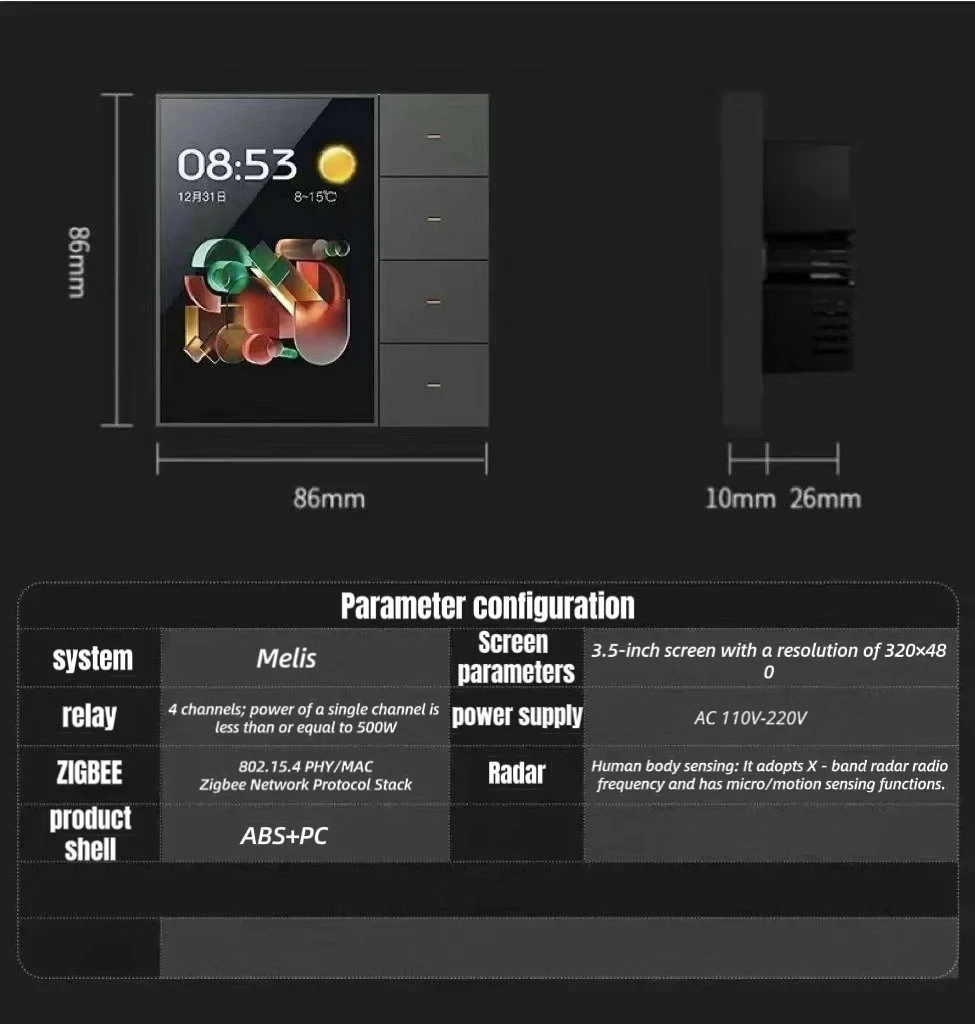

• Technical Specifications

• Protocols: Zigbee 3.0

• Load Capacity: 4×500W resistive load

• Display: 3.5" IPS capacitive touchscreen (480×320)

• Dimensions: 86-type standard (72×72mm)

• Power: Neutral & Live Wire Required (professional installation recommended)

• Operating Conditions: -10℃~50℃ / 10%-90% RH

Package Contents:

1 F3 - Pro Switch | 1 Mounting Bracket | 1 User Manual | 1 Warranty Card | 1 Set of Screw Components

Important Notes:

❗ It must be used in conjunction with a Tuya Zigbee gateway.

❗ To achieve the dimming function, a Zigbee - compatible LED driver is required.

❗ Professional electrical installation is highly recommended.

Upgrade Your Smart Home Hub Now – Redefine Life with F3 - Pro!
