Brief

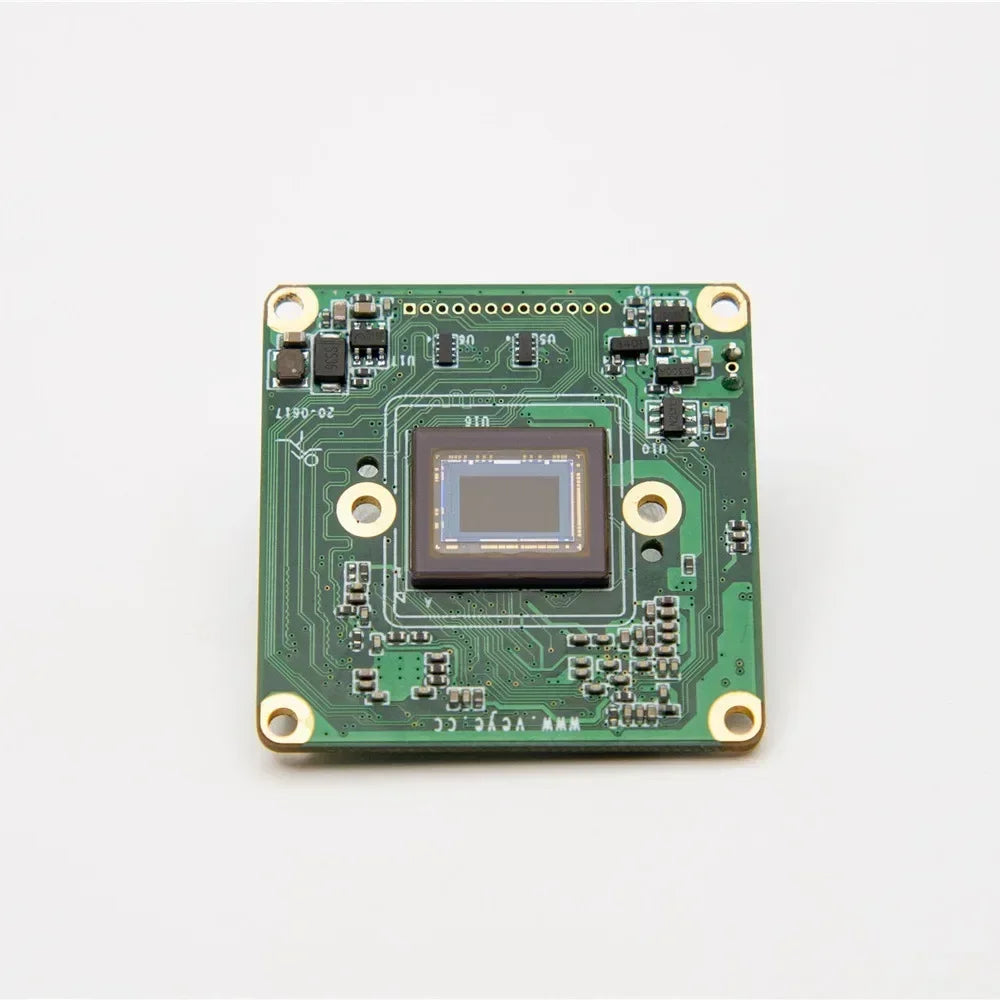

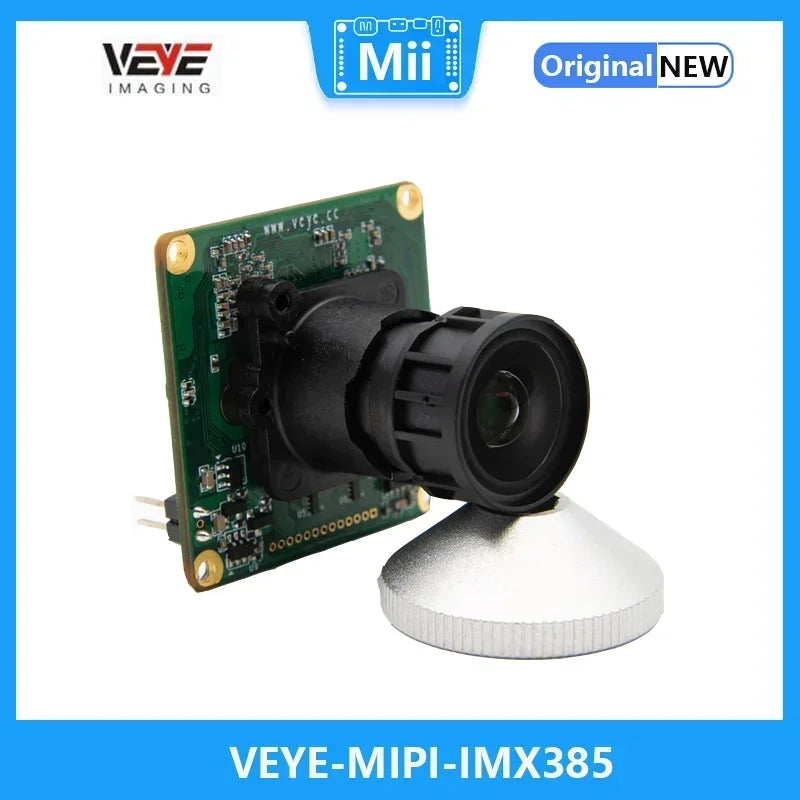

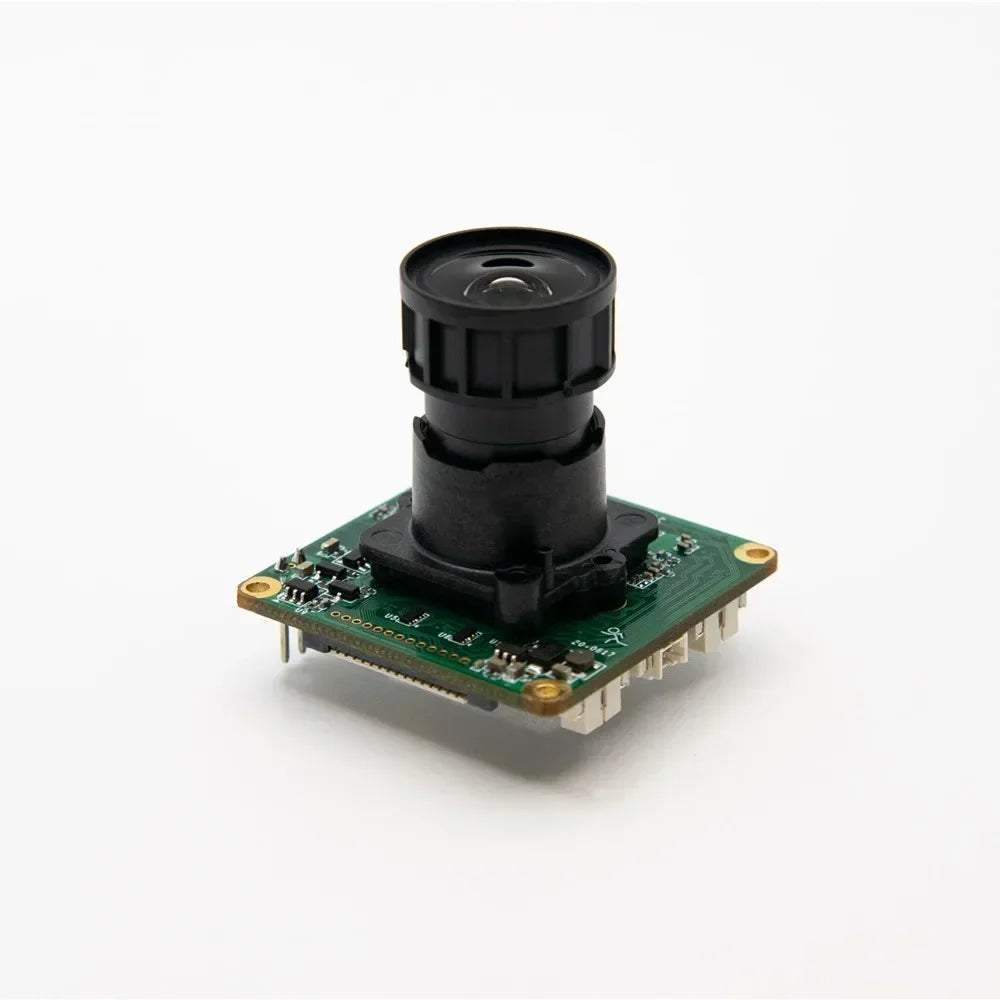

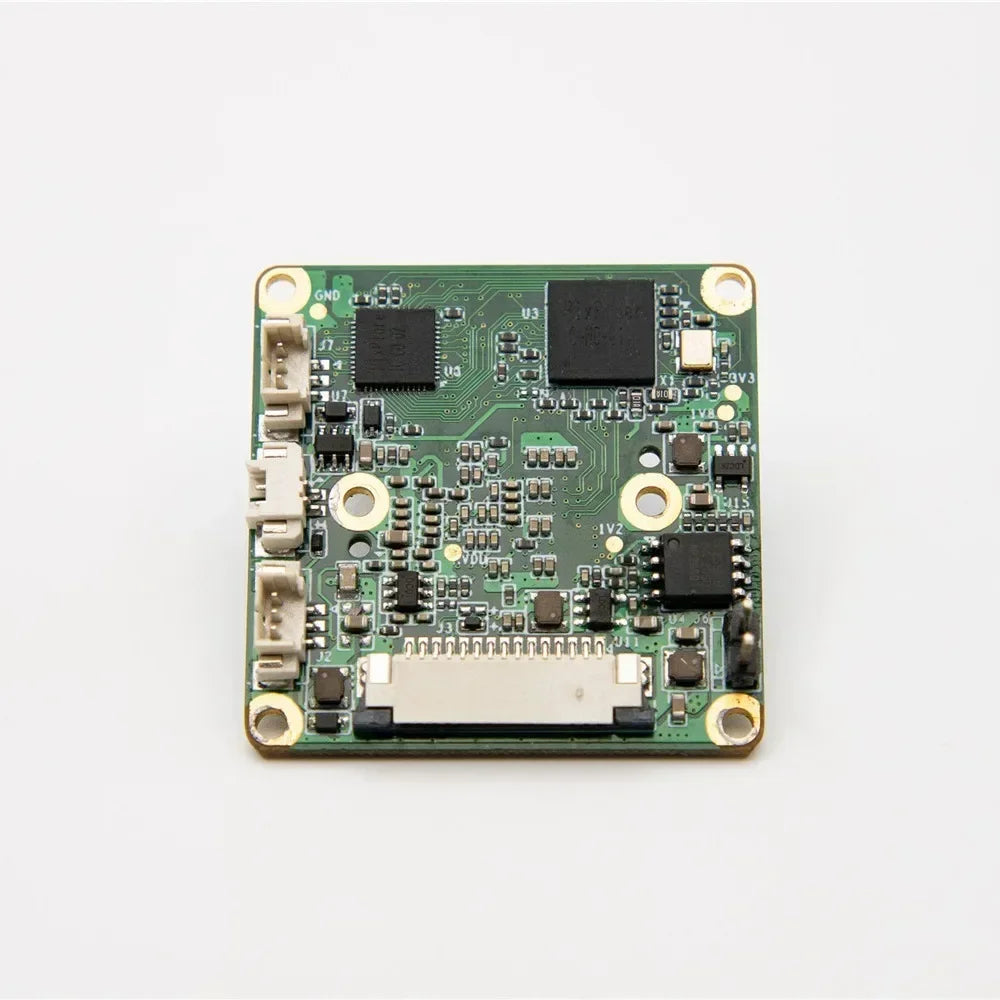

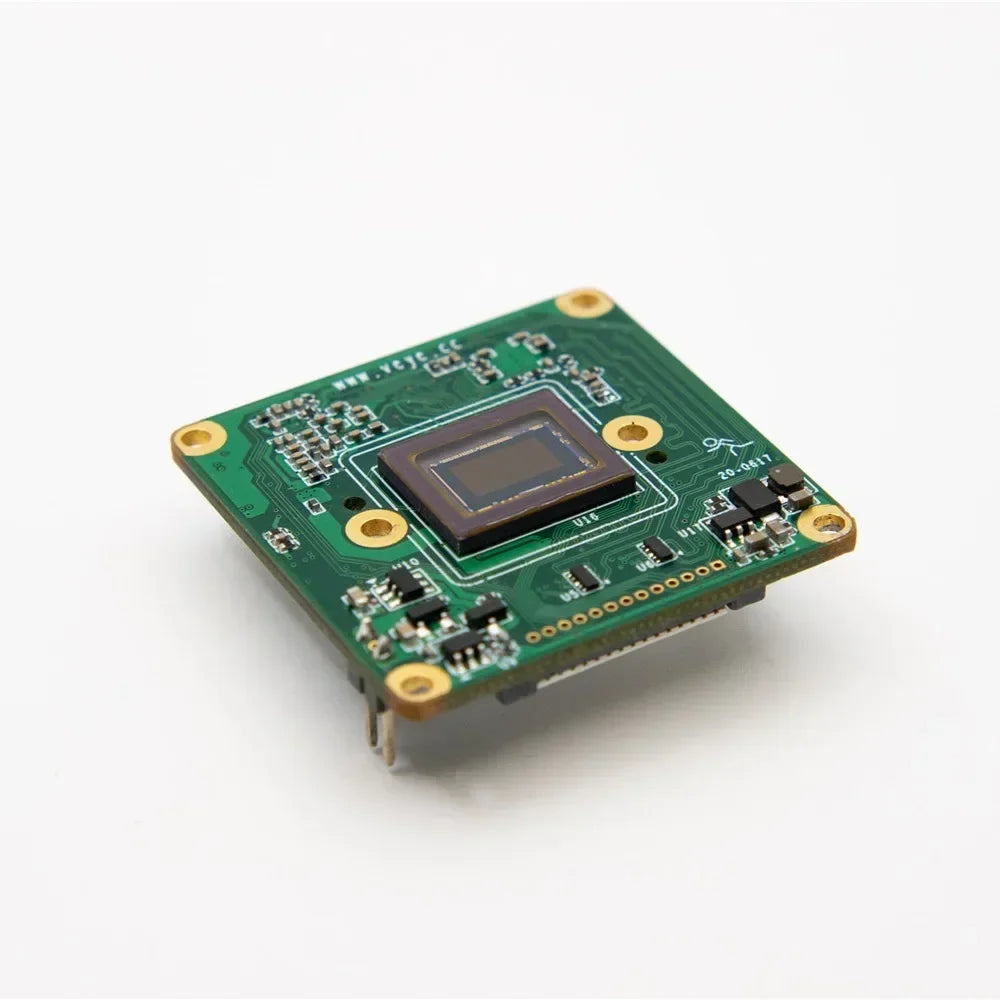

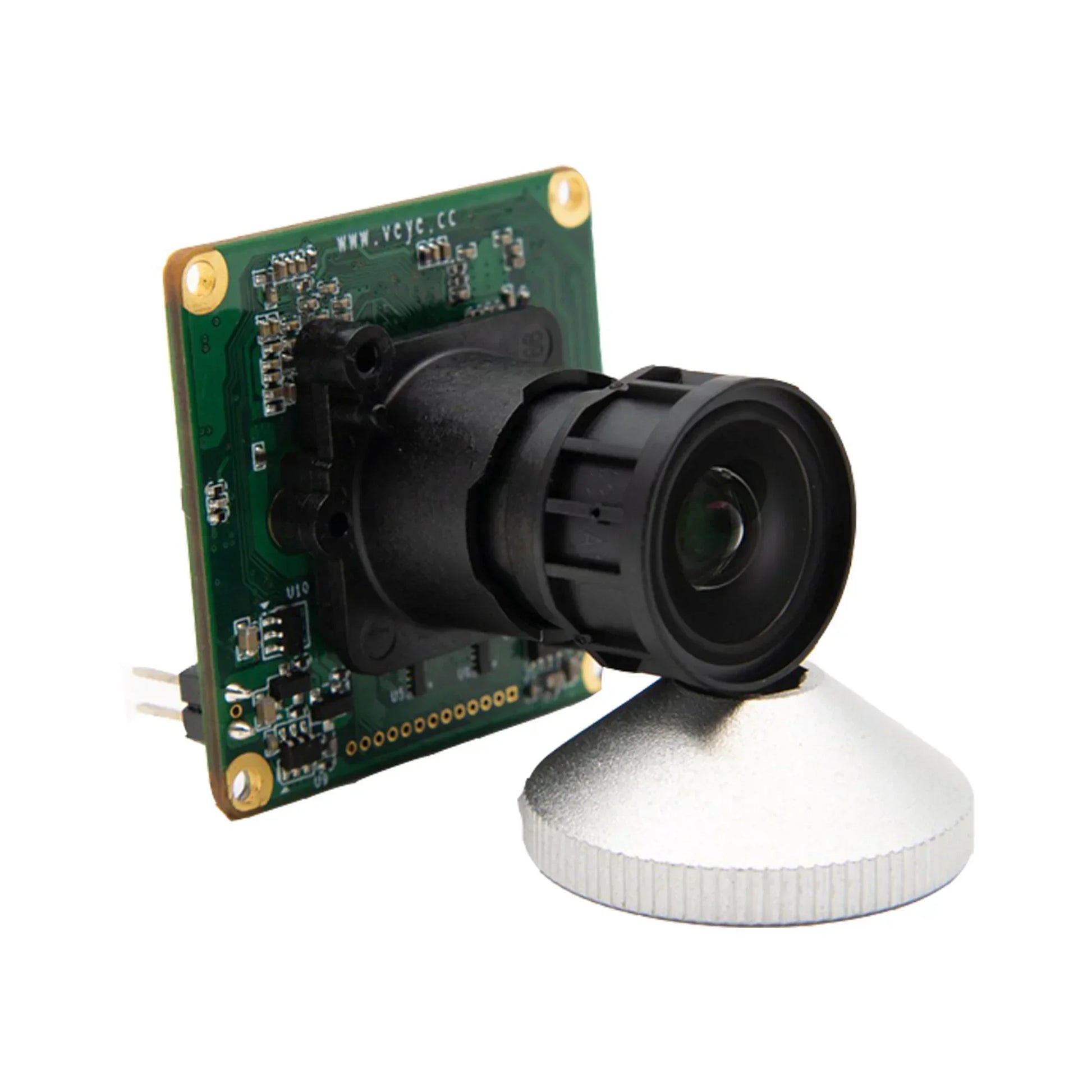

VEYE-MIPI-IMX385 is a large imaging size starlight video streaming module.
This package is compatible with Raspberry Pi 4/3B+/3/zero/cm3 and Jetson Nano/NX and i.MX8m.
Features
VEYE-MIPI-IMX385 is a large Imaging size starlight video streaming module, using a compact design (38*38mm) to facilitate user integration, standard 15pin FPC user interface, easy access to embedded platforms such as raspberry pie and Nvidia.
The function of automatic power switch is added,5V and 3.3V power supply can be automatically switched to 5V power supply, or you can freely choose 5V or 3.3V independent power supply.
+ 1/2 inch 2 Mega sensor IMX385LQR-C by SONY
+ MIPI output: CSI-2
+ Uncompressed UYVY format, YUV422-8bit
+ IR-CUT circuit
+ Stream mode and Capture mode
+ Framerate control
+ BLC, DOL-WDR, 2D/3D noise reduction, Brightness, Contrast, Sharpness, Saturation adjustable
+ Brightness, Contrast, Sharpness, Saturation adjustable
+ Support 5V - 3.3V access at the same time, automatic switch 5V power supply
+ Also support 5V, 3.3V independent power supply
Thechnical Details
Lens select
http://wiki.veye.cc/index.php/Lens_select
Camera Caputure File in different scenes
Full Resolution Video and Capture file:
https://www.mediafire.com/folder/zziqnrhhvyyss/VEYE_Camera_modules_Videos
Important references links
+ wiki about VEYE-MIPI-IMX385
http://wiki.veye.cc/index.php/VEYE-MIPI-IMX385_Starlight_Camera
+ github
https://github.com/veyeimaging
+ website
www.veye.cc
+ Forum
http://forum.veye.cc
Packaging and accessories
