• Wireless Control :Experience the convenience of wireless control with this 433MHz remote light switch. It's perfect for turning lights on and off at the push of a button.
• Versatile Application :This switch is not just for regular bulbs. It also works with LED lamps, making it a versatile addition to any home or office setup.
• Multiple Gang Design :With its 1/2/3gang design, this switch can control multiple devices simultaneously, saving you time and effort.
• Smart Lighting Feature :The smart lighting feature allows you to control how bright or dim you want your spaces to be, providing a personalized lighting experience.
• Durable Material :Made from high-quality plastic, this switch is designed to withstand daily use and last for years.
• Easy Installation :With its simple design, this switch can be easily installed on any wall, saving you money on professional installation fees.

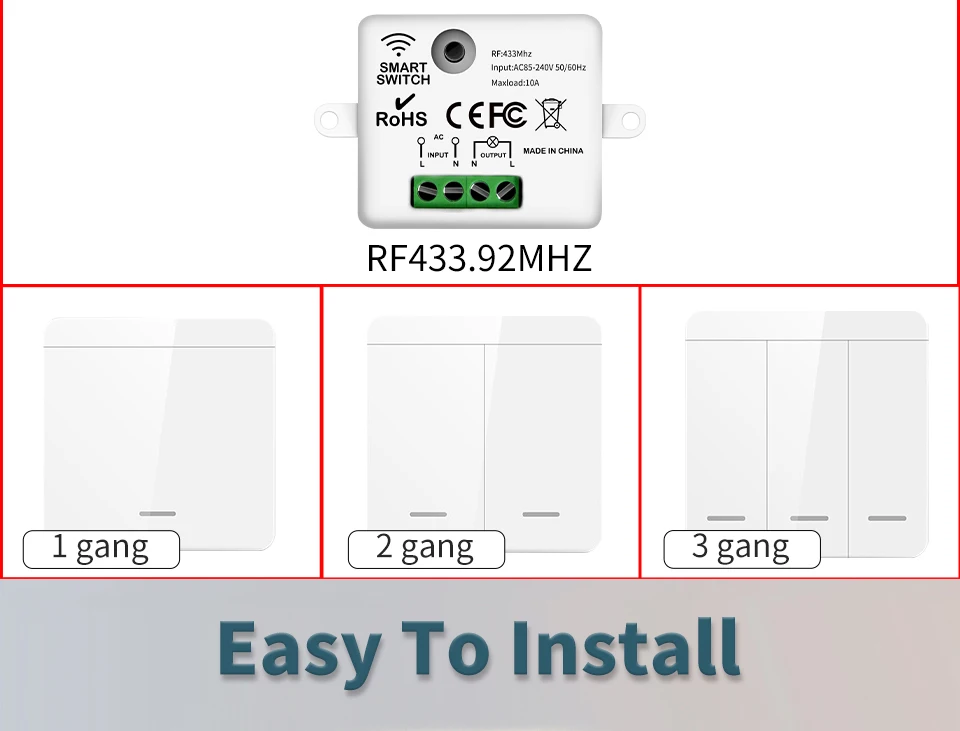

1/2/3 gang wireless light switch smart RF 433MHz remote control 86 wall panel push button 10A 110V 220V Receiver for LED/fan
Features:

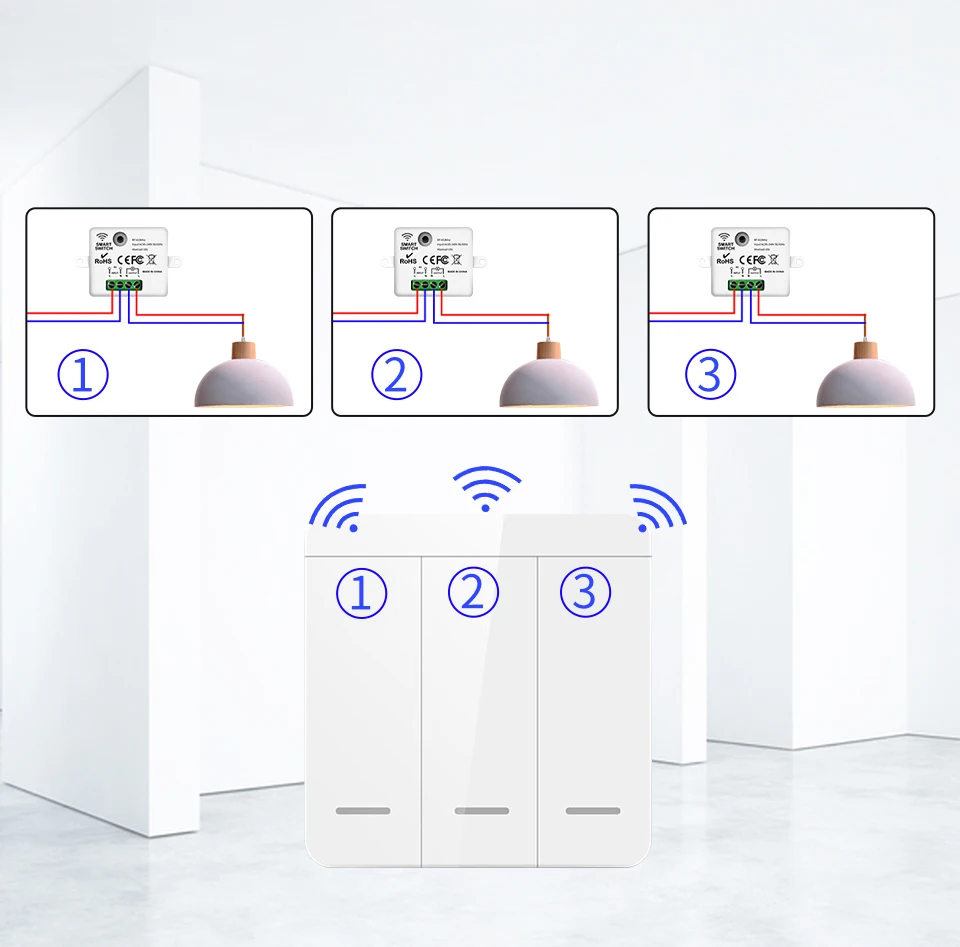

1.Multi switches can control different receivers.Save energy,avoid darkness.
2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.
3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.
How to get the signal
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
RF433 controller (Receiver) data
1)Workingvoltage:AC85-240V60HZ/50HZ
2)Workingfrequency:433MHZ
3)Powerconsumptioninstandbymode:<0.3W
4)Loadpower:<1100W
5)Receivingsensitivity:-108dBM
6)Workingway:wirelesscontrol
7)Codingway:learningcode
8)Modulation:ASK
9)Workingtemperature:-10*C~+70"C

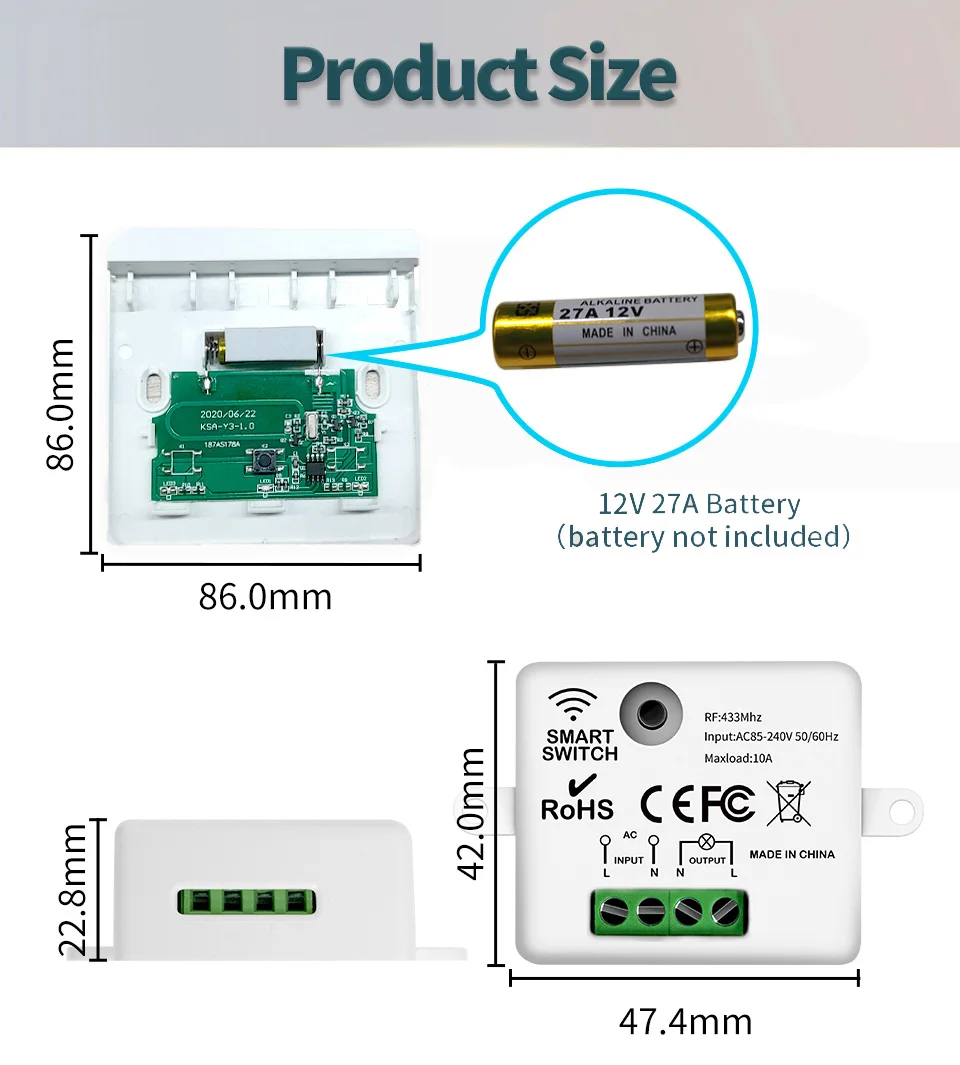

10)Size:47.4*42*22.8(mm)
86 Panel data
Wireless wall switch
Size:86mm * 86mm
Type:Wireless Wall Panel Switch------work with your 433mhz receiver,remote
control your device
Frequency:433MHZ
Type of wireless communication: RF
Channel: 1-gang/2-gang/3-gang(depends on your choice)
NOTE:This won't work if you just buy the wireless switch, needs to be used with your 433mhz receiver
433 MHz RF remote control data:
1 Working voltage: DC 12V
2 Power Supply: 23A 12V Battery(not include)
3 Working current: ≤ 10mA
4 Radiation power: ≤ 10mW
5 Timing resistor: 4.7M
6 Modulation mode: ASK (Amplitude modulation)
7 Working Frequency: 433mHz
8 Transmission Distance: 50m (It is the theory distance at the open field)
9 Encoder type: learning code 1527
10 remote control size: 110*38*15mm
11 Work with : 433mhz receiver

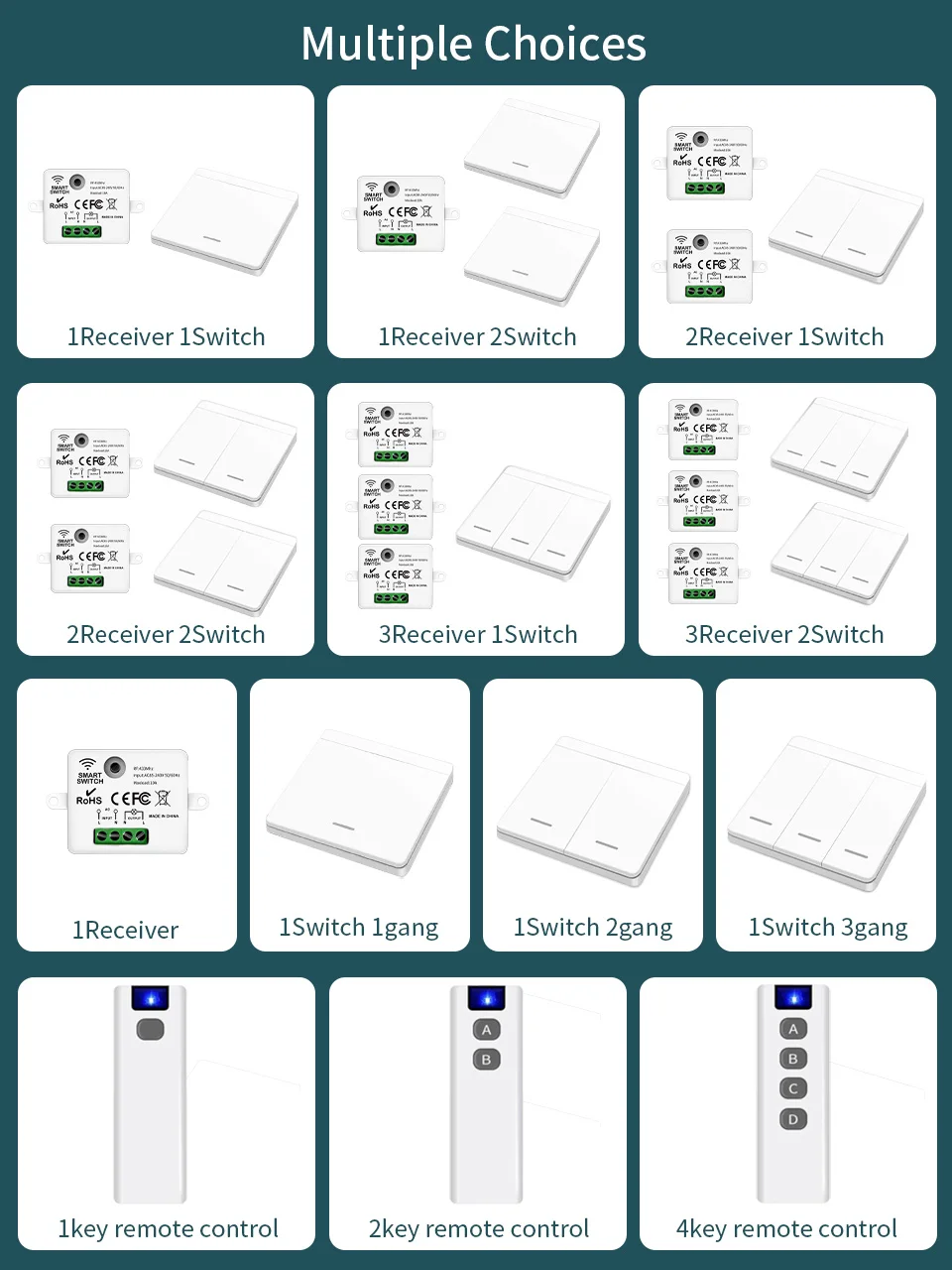

Multiple Choices:
There are various combinations in the options, which are convenient to use, please purchase according to actual needs.
User manual
